HEED 3 HP-4500 — 2.9 cu ft with Hose
Choose from these options:
FREE holster with mouthpiece cover included. Every HEED 3 package includes its MOLLE-compatible holster.
Choose Empty or Pre-filled (+$15, US ground only). Refill adapter is not included unless selected. Already own the correct compatible adapter? Choose None.
About this model
HEED 3, manufactured by Submersible Systems, is a compact, lightweight Category A self-contained breathing apparatus intended to improve the survivability of military and commercial personnel following unintended submersion in water. Developed from the need to equip US Navy helicopter pilots with a small, handheld breathing device, the HEED line has been manufactured since 1979. The HP-4500 model combines a 2.9 cu ft carbon-fiber cylinder rated to 4,500 psi with a separate second-stage regulator and a standard 20-inch flexible braided hose. Applications described by the manufacturer include helicopters, fixed-wing aircraft, float planes, watercraft and vehicles operating around possible water emergencies. Submersible Systems describes HEED 3 as having the smallest footprint in the EBS market.
Made in USA · Since 1979
What's included

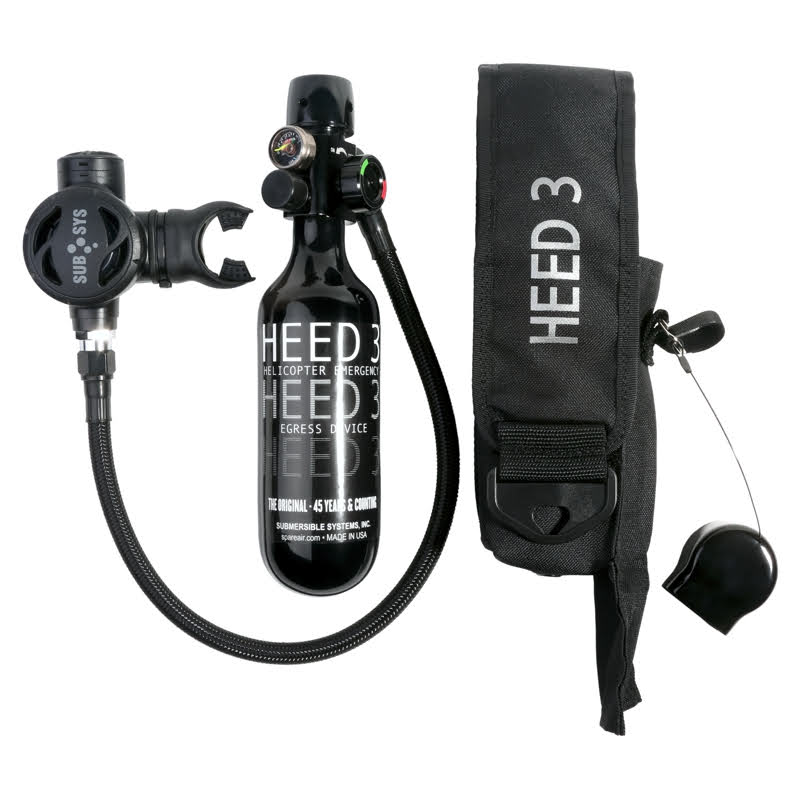

- HEED 3 HP-4500 breathing device and cylinder
- Included holster with mouthpiece cover and MOLLE-compatible attachment

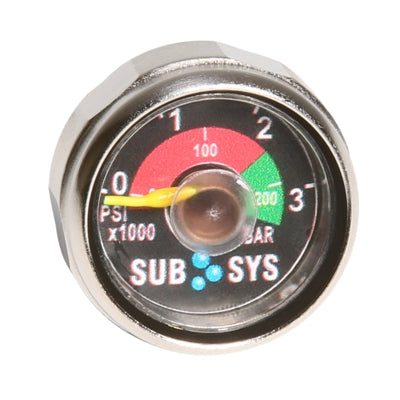

- Dial-gauge pressure indicator

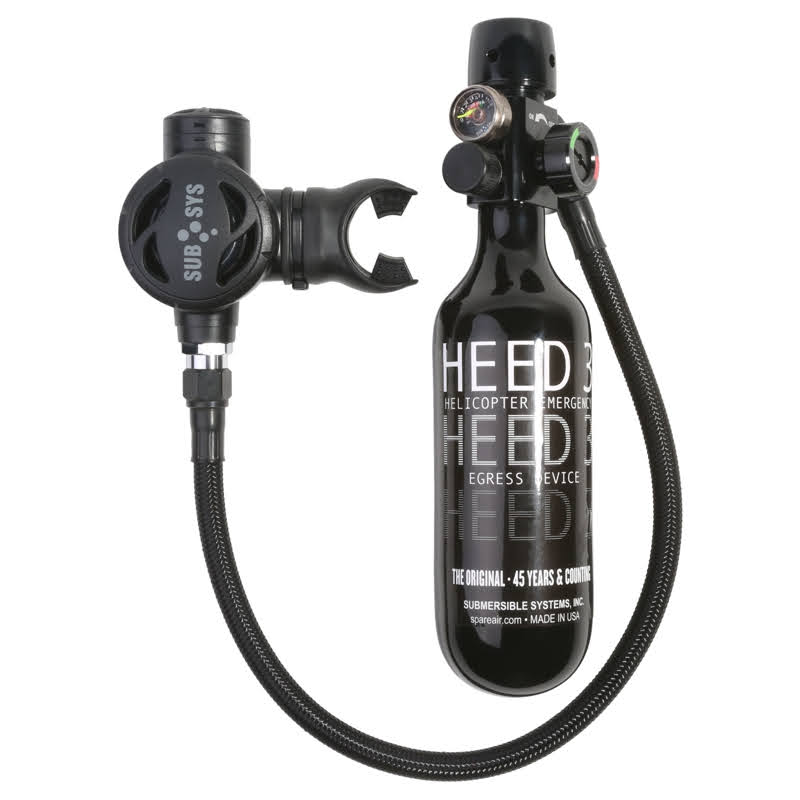

- 20-inch flexible braided hose, two-stage breathing device and on/off knob
- One refill adapter per HEED unit only if selected above
Nose clip, compressor, filling tank, life vest and PFD are sold separately.
Refilling your HEED

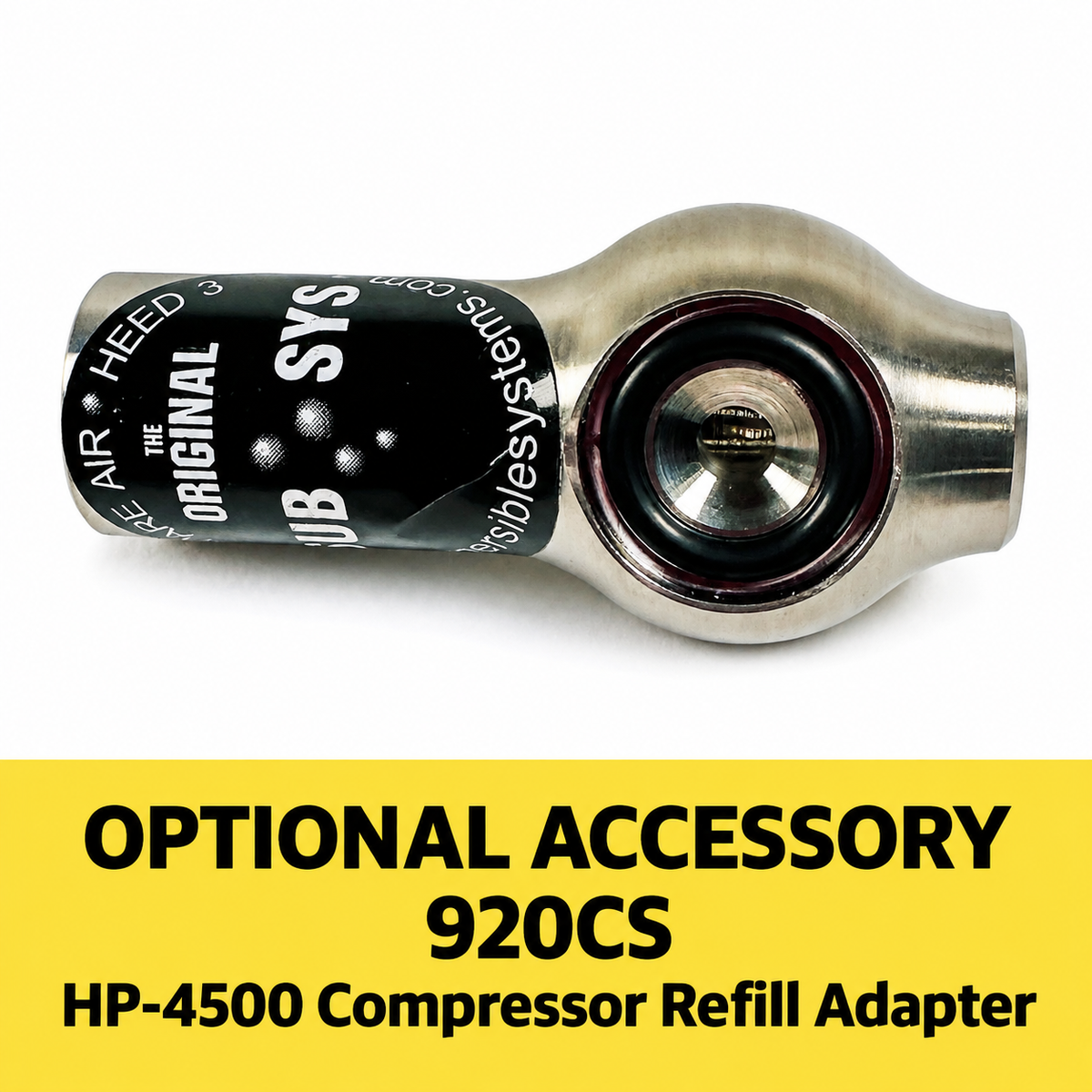

Optional 920CS stainless-steel air-compressor refill adapter (+$65). This model requires HP-specific filling hardware and a suitable 4,500 psi breathing-air source.
The selected adapter is supplied with every unit on that cart line. For three HEED units and one adapter, add one unit with an adapter and two units with None as separate cart entries.
Explore filling equipment
- Hill EVO-310 portable compressor — compare the filter, adapter and electrical-version options on the manufacturer’s store.
- L&W LW 100 E1 portable compressor — explore another manufacturer-listed compressor option.
Hand-pump note: the manufacturer does not recommend the Hill hand pump for 4,500 psi models. Use the appropriate compressor setup for HP-4500.
Filling equipment is sold separately. Confirm the correct pressure, filtration, connections and supplied adapter for your HEED model before purchase. Follow manufacturer instructions and training requirements. Read the HEED refilling guide.
Mounting and setup

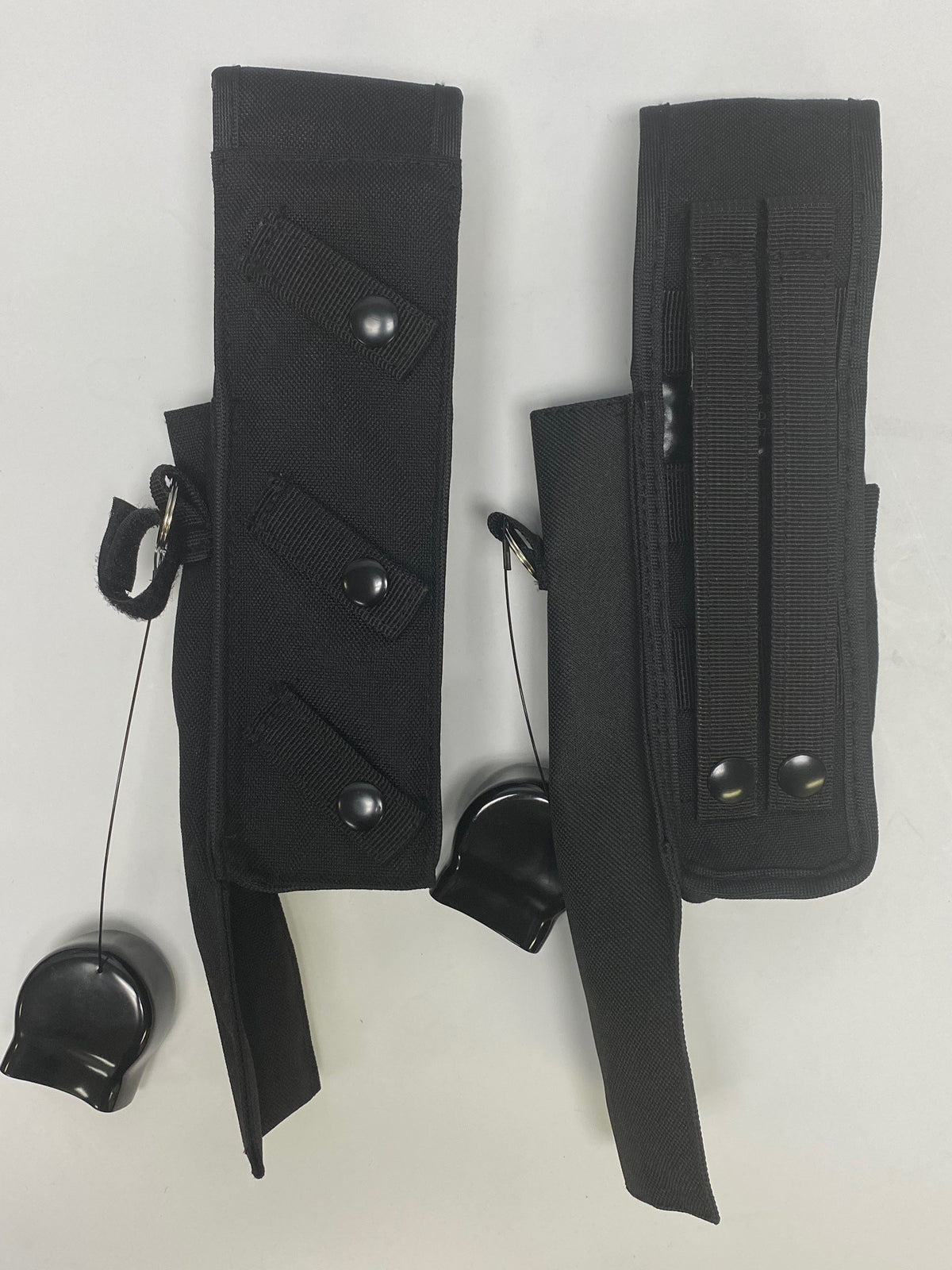

The included holster provides a mounting arrangement for compatible MOLLE equipment. These photos illustrate the device’s scale and available mounting positions. Life vests and PFDs shown are sold separately; select the holster orientation offered for this model and confirm fit with your equipment.
Specifications
- Capacity: 2.9 cu ft / 81 L
- Service pressure: 4,500 psi / 310 bar
- Cylinder: black carbon fiber; ISO cylinder
- Made in USA 🇺🇸
- Dimensions: 10 in long × 2.4 in diameter
- Product weight: 1.8 lb
- Hose length: 20 inches (standard)
- Duration of Air: 54 breaths*
*Manufacturer figure based on 1.5 liters per breath. Actual duration varies with breathing demand and conditions; this is not a guaranteed time in minutes.
Optional accessories
Refill adapters are included only when selected above. The nose clip is sold separately.
Accessories and related items
Add only the accessories you need. These items are sold separately:
- Nose clip with lanyard
- SWITLIK X-Back Air Crew Life Vest — HEED and holster sold separately
- Browse HEED accessories, refill adapters and replacement parts
Ordering and shipping
Choose Empty or Pre-filled (+$15). Pre-filled units are available for US ground shipping only. Orders requiring air transport or delivery outside the US must use Empty. Cylinder markings will be reviewed based on the shipping destination; we may email you to confirm the intended country of use before fulfillment. Australian customers: find your regional dealer.
Contact us for current availability and quantity lead times.
Manufacturer product information and instructions
Replacement parts & accessories
Shop replacement parts for service items, gauges, mouthpieces, refill-port parts and O-rings. Browse accessories for holsters, carrying bags and mounting options. Check each item’s model compatibility before ordering; contact us with your model and serial number if you need help selecting a part.
