HEED 3 - SWBA Swift Water Breathing Apparatus
Choose from these options:
Ships empty unless Pre-filled (+$15) is selected. Pre-filled units are available for US ground shipping only. A refill adapter is included only when selected.
About HEED 3 SWBA
Based on Submersible Systems’ HEED 3 compressed-air emergency breathing system, originally used by crews escaping ditched aircraft in water, HEED 3 SWBA (Swift Water Breathing Apparatus) is designed as a surface-level emergency breathing system for swift-water and flood-rescue personnel. Its separate first- and second-stage regulators, flexible braided hose and PFD mounting system provide a configuration for rescue operations.
Made in USA · Since 1979
Package includes
- HEED 3 first- and second-stage regulators with on/off knob
- 3 cu ft black anodized aluminum cylinder
- SWBA padded holster with MOLLE straps, Velcro and D-rings for PFD attachment
- Neoprene shoulder sleeve
- Dial-gauge pressure indicator
- Standard 36-inch Miflex flexible braided hose
PFD and nose clip are sold separately.
Sold separately: nose clip with lanyard and HEED accessories and replacement parts.

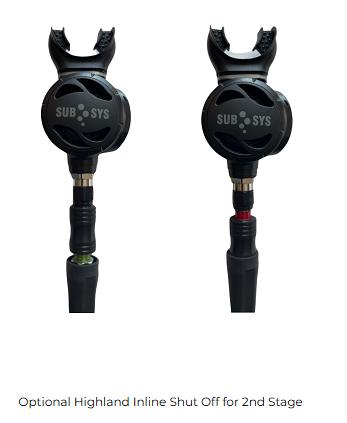

Inline shutoff option
Add the Highland by XS Scuba Deluxe inline shutoff for the second stage (+$59.99), or choose None. The knurled slide collar switches gas flow on or off. It is supplied only when selected.
Optional accessories
Refill adapters are included only when selected above. The nose clip is sold separately.
Mounting and setup
The padded holster provides MOLLE straps, Velcro and D-rings for attachment to a compatible PFD. The included shoulder sleeve helps organize the hose and second-stage regulator. These photos show mounting and hose-routing examples; the PFD is sold separately. Confirm fit and follow the manufacturer’s setup and training instructions.
Specifications
- Model: 300-003A-SW
- Capacity: 3 cu ft / 85 liters
- Service pressure: 3,000 psi / 207 bar
- Length: 13.4 in / 34 cm; diameter: 2.5 in / 6.4 cm
- Product weight: 2.2 lb / 1 kg
- Black anodized aluminum cylinder
- Piston, downstream demand valve; 36-inch hose
- Pressure relief integrated in regulator
- Operational temperature: -22°F / -30°C to +158°F / +70°C
- Duration of Air: 57 breaths*
- Manufactured: Made in USA
*Manufacturer figures based on 1.5 liters per breath. Actual duration varies with breathing demand and conditions; no fixed number of minutes is guaranteed.
Refilling
A refill adapter is not included unless selected. Choose a 920C breathing-air compressor adapter (+$65), 910C yoke SCUBA-tank adapter (+$100), or 910D DIN SCUBA-tank adapter (+$100), according to your filling equipment. Each selected adapter is supplied with each unit on that cart line. To order several units with one adapter, add one with an adapter and the others with None.
Filling equipment is sold separately. Confirm pressure, breathing-air filtration, connections and supplied adapter before purchase. Follow manufacturer filling and training instructions.
Manufacturer HEED refilling guide
Ordering and shipping
Choose Empty or Pre-filled (+$15). Pre-filled units are available for US ground shipping only. Orders requiring air transport or delivery outside the US must use Empty. Cylinder markings will be reviewed based on the shipping destination; we may email you to confirm the intended country of use before fulfillment. Australian customers: contact us before ordering to confirm the regional supply route.
Follow manufacturer instructions for use, filling and maintenance. Contact Submersible Systems to confirm intended application and order requirements.
Replacement parts & accessories
Shop replacement parts for service items, gauges, mouthpieces, refill-port parts and O-rings. Browse accessories for holsters, carrying bags and mounting options. Check each item’s model compatibility before ordering; contact us with your model and serial number if you need help selecting a part.
